Leírás

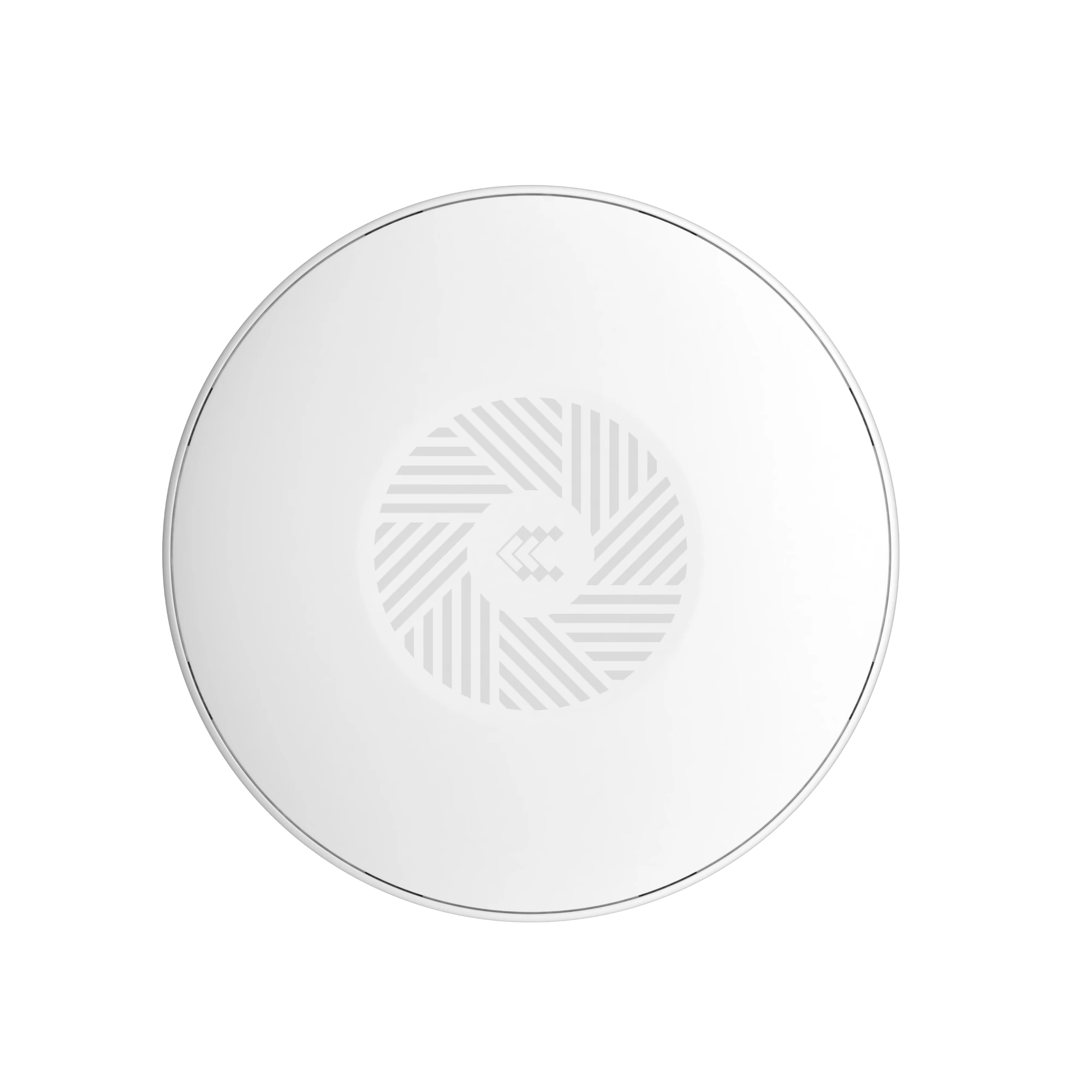

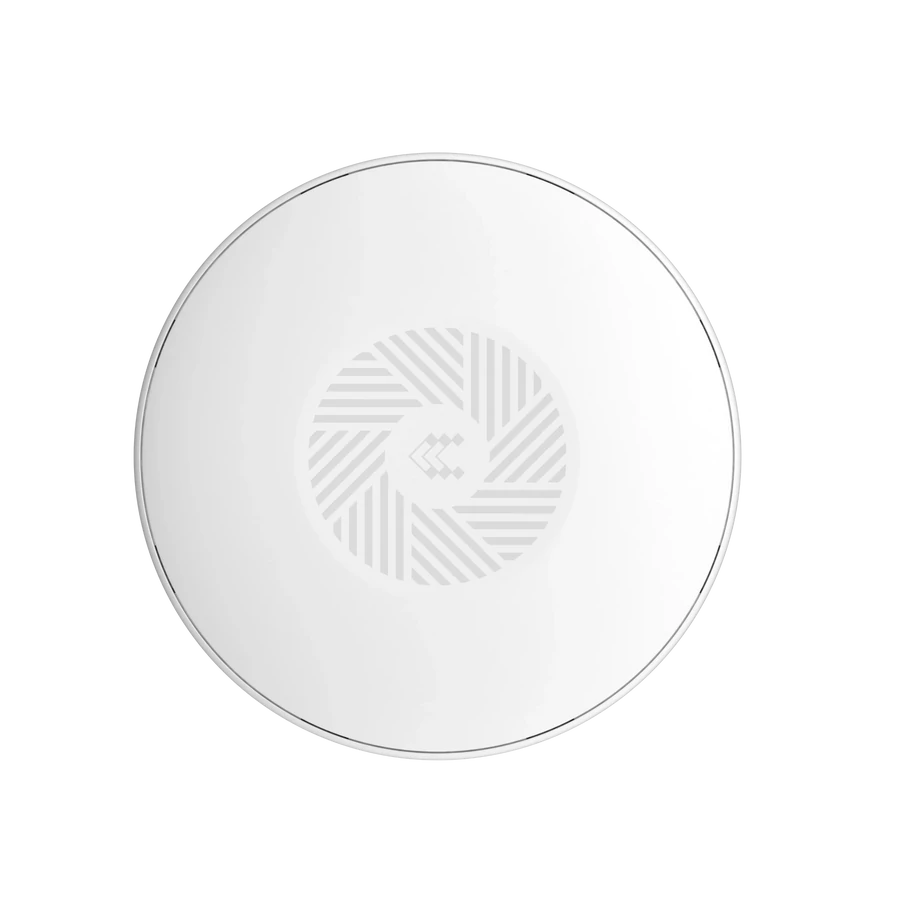

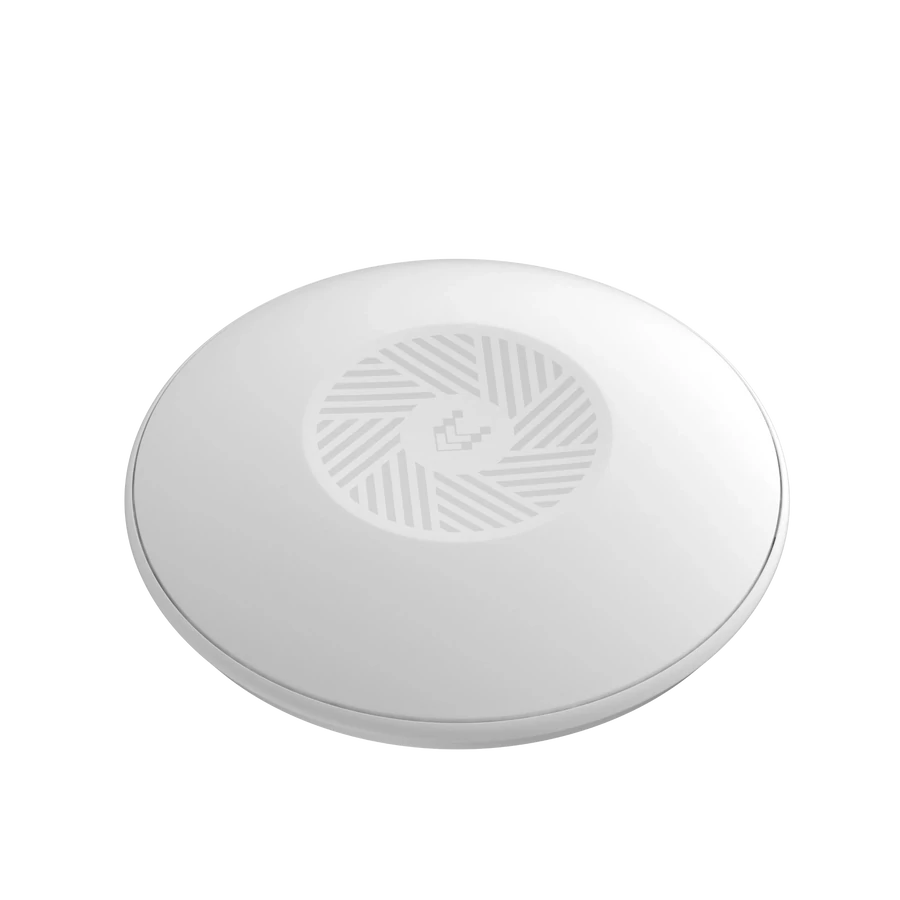

A Teltonika TAP400 egy nagy teljesítményű Wi-Fi 6 hozzáférési pont, amelyet olyan kis- és középvállalkozások számára terveztek, amelyek gyors, hatékony vezeték nélküli lefedettséget és egyszerű központosított felügyeletet igényelnek. Tapasztalja meg az ultragyors átviteli sebességet a dedikált 2,5 GbE feltöltésnek és a Wi-Fi 6 többfelhasználós hatékonyságának köszönhetően. Az eszköz biztosítja a hálózat folytonosságát és a zökkenőmentes bővítést a Fast Roaming és a Mesh segítségével. Minden hálózati konfiguráció, felügyelet és hibaelhárítás távolról is kezelhető a Teltonika RMS segítségével, így zökkenőmentesen elérheti és vezérelheti a hálózaton lévő többi eszközt.
Kapcsolódó termékek
1.405 Ft + ÁFA
(1.784 Ft)
Cikkszám: C6ASFTPSGPVC-1.5mB
2.075 Ft + ÁFA
(2.635 Ft)
Cikkszám: C6ASFTPSGPVC-2.1mB
2.235 Ft + ÁFA
(2.838 Ft)
Cikkszám: C6ASFTPSGPVC-2.4mY
7.106 Ft + ÁFA
(9.025 Ft)
Cikkszám: PR322EU7
Paraméterek
| Wireless | |
| Wireless mode | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5GHz and 576 Mbps on 2.4GHz (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise:PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 512 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information. |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| Ethernet | |
| Ethernet | 1 x RJ45 port 100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | |
| Network protocols | TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, IPsec, PPP, HTTP, TTPS |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
| Hotspot 2.0 | Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
| Security | |
| Authentication | SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator |
| VLAN | Tag-based VLAN separation |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
| Certificate Manager | Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates |
| 802.1x | Port-based network access control client |
| Data to Server | |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
| API | |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| Receive email message status alerts of various services | |
| JSON-RPC | Management API over HTTP/HTTPS |
| Wi-Fi Scanner | Wi-Fi Scanner scans and collects information about wireless devices in surrounding area |
| RMS | Teltonika Remote Management System (RMS) |
| System Characteristics | |
| CPU | Mediatek, Dual-Core, 1.3 Ghz |
| RAM | 512 MB, DDR3 |
| FLASH storage | 16MB SPI NOR Flash, 512MB SPI NAND Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
| Firmware/Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
| FIRMWARE CUSTOMISATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
| Power | |
| Connector | RJ45 Socket |
| Input voltage range | 44.0 – 57.0 V, surge protection >64.4 VDC 10us max |
| PoE standards | 802.3af PoE Class 3 |
| Power consumption | Idle:< 7 W / Max:< 11 W |
| Physical Interfaces | |
| Ethernet | 1 x RJ45 port, 100/1000/2500 Mbps |
| Status LEDs | 1 x Power LED (can be turned off from web-UI) |
| Antennas | 3 x Internal for 2.4 GHz Wi-Fi and 5 GHz Wi-Fi antennas |
| Antennas specifications | 3x 2400 - 2500 MHz, peak gain < 4.33 dBi & 5150 - 5850 MHz, peak gain < 4.9 dBi, omnidirectional |
| Reset | Reboot/User default reset/Factory reset button |
| Physical Specification | |
| Casing material | UV stabilized plastic, aluminum |
| Dimensions (W x H x D) | Ø 158 mm x 31.4 mm |
| Weight | 285 g |
| Mounting options | AP mounting bracket (for ceiling mount) |
| Operating Environment | |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
