Leírás

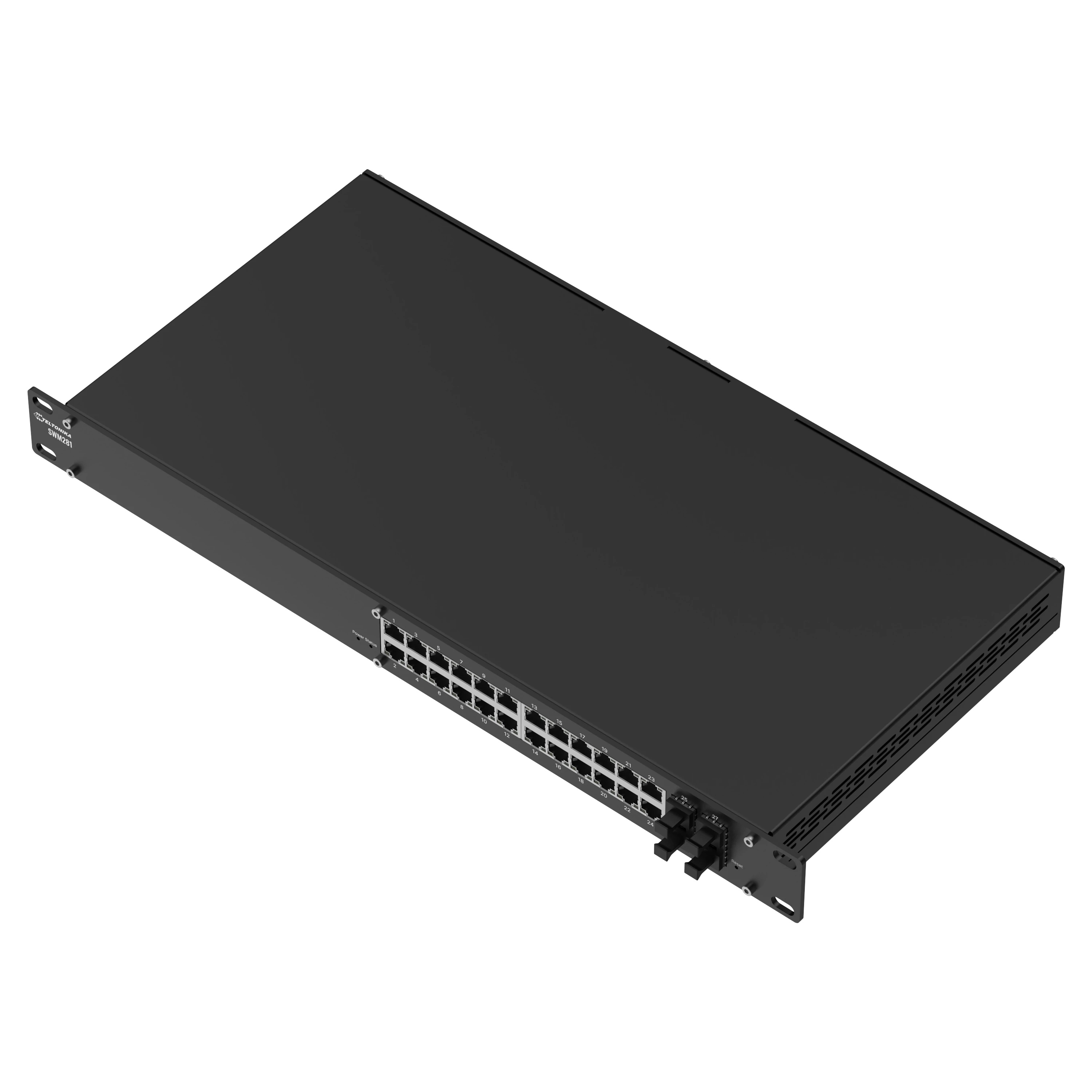

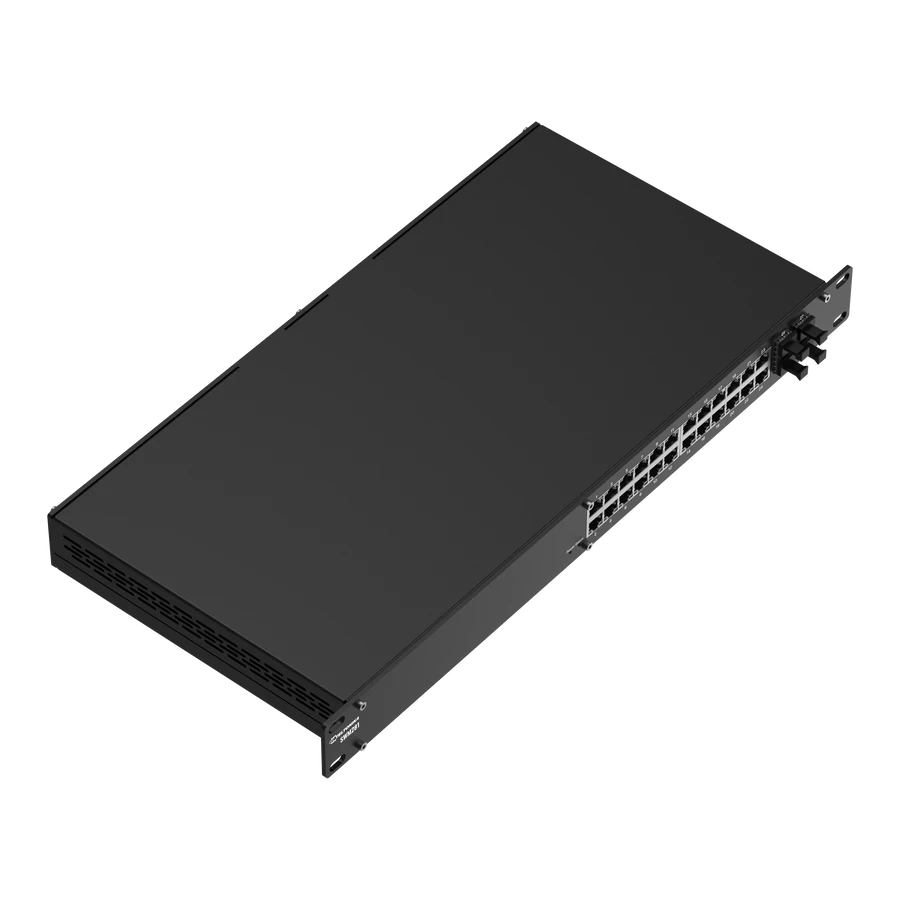

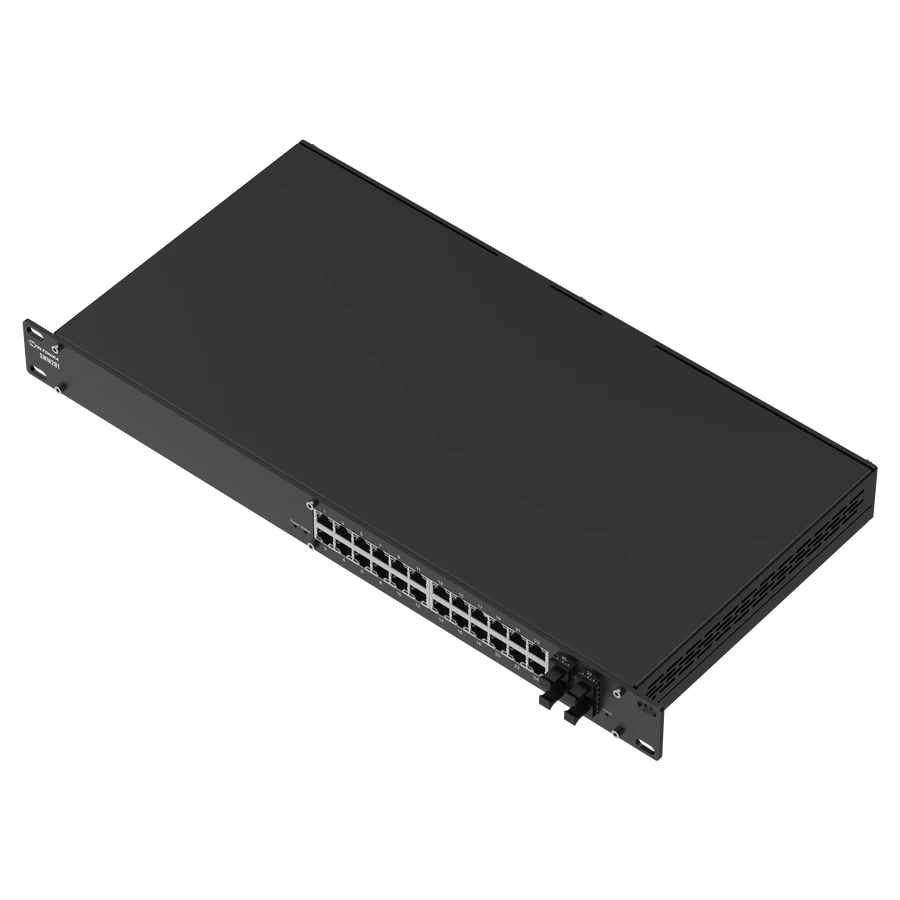

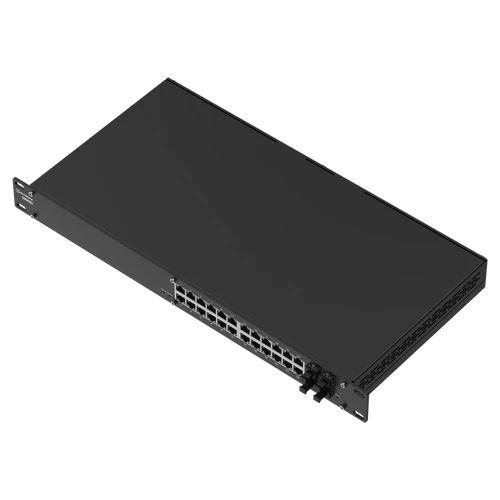

Az SWM281 24 gigabites Ethernet portjával és 4 dedikált SFP portjával nagy sávszélességű teljesítményt és megbízható optikai szálas kommunikációt biztosít nagyméretű telepítésekhez. A PROFINET és más ipari protokollok támogatásával ez a vállalati szintű 24 portos switch zökkenőmentes integrációt biztosít automatizált környezetekbe.
Kapcsolódó termékek
36.315 Ft + ÁFA
(46.120 Ft)
Cikkszám: SFP-10GLRM-31-I
18.160 Ft + ÁFA
(23.063 Ft)
Cikkszám: SFP-10GLRL-31-I
10.375 Ft + ÁFA
(13.176 Ft)
Cikkszám: SFP1G-SX-31-I
1.100 Ft + ÁFA
(1.397 Ft)
Cikkszám: C5EUTPSGPVC-0.9mB
1.350 Ft + ÁFA
(1.715 Ft)
Cikkszám: C6ASFTPSGPVC-0.9mBK
Paraméterek
| Ethernet | |
| Fiber | 4 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad |
| ETH | Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| INDUSTRIAL PROTOCOLS | |
| Profinet | Profinet Class B conformance (available with optional order code) |
| Services | |
| EtherNet/IP | Yes |
| SNMP V2, V3 | Yes |
| LLDP | Yes |
| Network Management | |
| 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN | |
| Network | |
| Routing | Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP) |
| Port aggregation | 802.3ad (LACP) |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Multicast | IGMP snooping, multicast querier support |
| Port Settings | Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| QoS | |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling method | SP/WFQ/WRR |
| Bandwidth control | Rate limiting, storm control |
| Traffic Shaper | Port-based shaping |
| Diagnostics | |
| Tools | Cable diagnostic, ping, traceroute, nslookup |
| Ping reboot | Capability to restart PoE in a specific port |
| Security | |
| Authentication | PAM — preshared key, Radius & TACACS+, IP & login attempts block |
| VLAN | Port VLAN separation |
| 802.1x | Port-based network access control client and server |
| MAC filtering support | Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected |
| API | |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. |
| System Characteristics | |
| CPU | Realtek, 500MHz, MIPS-4KEc |
| RAM | 128MB, DDR3 |
| FLASH storage | 16 MB serial flash |
| Firmware/Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
| FIRMWARE CUSTOMISATION | |
| Operating system | SwmOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| Package Manager | The Package Manager is a service used to install additional software on the device |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 56 Gbps |
| Forwarding rate | 83.33 Mpps |
| Packet buffer | 512 KB |
| MAC address table size | 8K entries |
| Jumbo frame support | 10000 bytes |
| Power | |
| Connector | C14 connector |
| Input voltage range | 100-240 VAC, 50/60 Hz |
| Power consumption | Idle:7.5 W / Max:325 W / PoE Max:300 |
| Physical Interfaces | |
| Ethernet | 24 x RJ45 ports, 10/100/1000 Mbps |
| Fiber | 4 x SFP ports |
| Status LEDs | 1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs |
| Power | 1 x C14 connector |
| Reset | Software reset button |
| Other | 1 x Grounding screw |
| Cooling type | Active |
| Fans | 2 × internal fans |
| Airflow direction | Side-to-back |
| Physical Specification | |
| Casing material | Anodized aluminium housing and panels |
| Dimensions (W x H x D) | 483 x 44 x 234 mm |
| Weight | 1853 g |
| Mounting options | Rack mounting kit |
| Operating Environment | |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
