Leírás

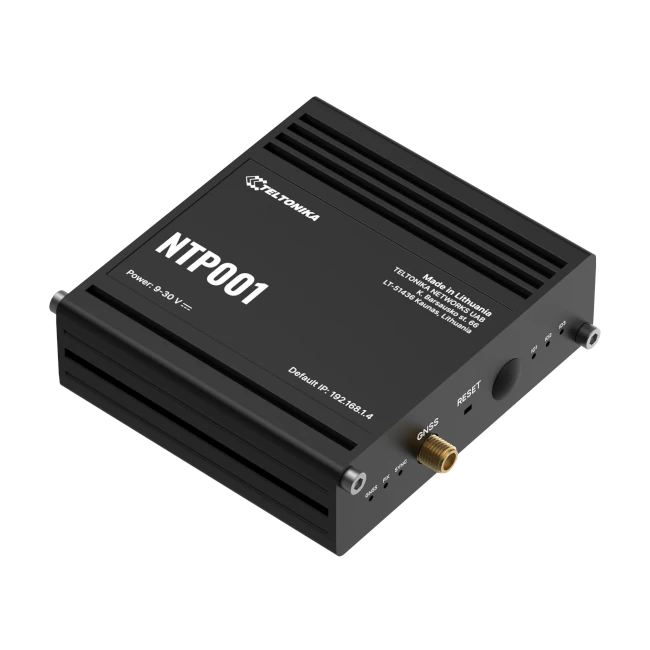

Az NTP001 egy stratum-1 Teltonika NTP szerver, amelyet a pontos, UTC-követhető idő szinkronizálására terveztek mind nyilvános, mind privát hálózatokban, internet-hozzáférés nélkül. GNSS-képességeinek köszönhetően ez az alacsony költségű NTP szerver pontos, UTC-követhető időt biztosít. A plug-and-play funkció, a széleskörű interfészek, beleértve az RS232-t és az RS485-öt, valamint a robusztus biztonsági profil mind a tökéletes NTP szerverré teszi az NTP001-et a hálózatához.
Kapcsolódó termékek
1.350 Ft + ÁFA
(1.715 Ft)
Cikkszám: C6ASFTPSGPVC-0.9mBK
1.870 Ft + ÁFA
(2.375 Ft)
Cikkszám: C6ASFTPSGPVC-1.8mR
2.235 Ft + ÁFA
(2.838 Ft)
Cikkszám: C6ASFTPSGPVC-2.4mB
Paraméterek
| Ethernet | |
| LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| Connection monitoring | :Ping Reboot, Wget Reboot, Periodic Reboot |
| Network topology | Visual representation of your network, showing which devices are connected to which other devices |
| DDNS | :Supported >77 service providers, others can be configured manually |
| Security | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| WEB filter | Block list for blocking out unwanted websites, allow list for specifying allowed sites only |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
| 802.1x | Port-based network access control client |
| MQTT Gateway | |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| MODBUS | |
| Supported modes | Server, Client |
| Supported connection types | RTU (RS232, RS485), TCP |
| Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
| Supported data formats | 8-bit:INT, UINT; 16-bit:INT, UINT (MSB or LSB first); 32-bit:float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| TIME SYNCHRONIZATION | |
| Acquisition Sensitivity | Acquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm |
| Time Source | GPS 1575.42 ±1.023 MHz, GLONASS 1597.5–1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz |
| Startup | Cold GPS acquisition in <120 seconds |
| API | Teltonika Networks Web API (beta) support |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| SSH | SSH (v1, v2) |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB, NOR Flash |
| Firmware/Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
| FIRMWARE CUSTOMISATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell (ash), Lua 5.1, C, C++ |
| Development tools | SDK package with build environment provided |
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
| Serial | |
| RS232 | Terminal block connector:TX, RX, RTS, CTS |
| RS485 | Terminal block connector:D+, D-, R+, R- (2 or 4 wire interface) |
| Input/Output | |
| Input | 3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 3 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Power | |
| Connector | 2-pin in 16-pin industrial terminal block |
| Input voltage range | 9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max |
| Power consumption | Idle:< 2 W, Max:< 3.5 W |
| Physical Interfaces | |
| Ethernet | 1 x RJ45 ports, 10/100 Mbps |
| I/O’s | 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block |
| Status LEDs | 1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs |
| Power | 1 x 16-pin terminal block |
| Antennas | 1 x SMA for GNSS |
| RS232 | 4-pin in 16-pin terminal block (TX, RX, RTS, CTS) |
| RS485 | 4-pin in 16-pin terminal block (D+, D-, R+, R-) |
| Reset | Reboot/User default reset/Factory reset button |
| Physical Specification | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 82.6 x 25 x 83 mm |
| Weight | 180 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, CB, UCRF, EAC, WEEE |
| NTP | |
| Supported modes | Server - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485) |
| Daytime Protocol | TCP/UDP |
| Date over Serial | RS232/RS485 |
| NTP | :NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode |
| Protocol | NTP Stratum 1 Time Server (NTPv4) |
| NTP Accuracy | Ethernet NTP ±1ms overall |
| NTP Performance | >300 NTP requests per second (wire speed) |
| Synchronization Accuracy | LAN synchronization typically 1–10ms |
